G-tech Engineering Ltd has a Production control system which is networked to different workstations throughout the factory, thus enabling close monitoring of production, as work progresses through the factory.

All the following machines are capable of being pre-programmed on our ‘ESPRIT
CAD/CAM’ system and downloaded directly into the machines

Capacity

CNC LATHE MAKAMURA AS200L

Spindle speed 6000min-1

Milling and Turning capability

CNC LATHE-Nakamura WT150

2 Turrets

12 Tools on Each Turret

Turning speed of 5000rpm

Miyano BNA 42S

Max Bar 42mm

Twin Spindle

Max. Speed 5000(rpm)

8 Turret Positions

Star SR20J Type C

Max Bar 20mm

Max Length 185mm

Max Spindle speed 8000(rpm)

CNC Lathe

CMZ TL25B

Spindle Speeds 50 - 3500rpm

12 Turret Stations

CNC Lathe

CMZ TL25A

Main Spindle speed 5000rpm

12 Turret Stations

CMZ TB67

10" Chuck

Max Billet 250mm

Max Length 350mm

Max. Spindle speed 4000 (rpm)

12 Turret Positions

LATHE-PROTURN-SLX 555

2600 x 1600 x 1950

1 Turret

Turning speed of 1800 rpm

Hurco VMX42SRTi

Travel: 1067 x 610 x 610 mm

Max. Spindle Speed 12000(rpm)

40 Tool Stations

Hurco VM30i

Axis Travel: 1270 x 508 x 508 mm

Max. Spindle Speed 12000(rpm)

24 Tool Stations

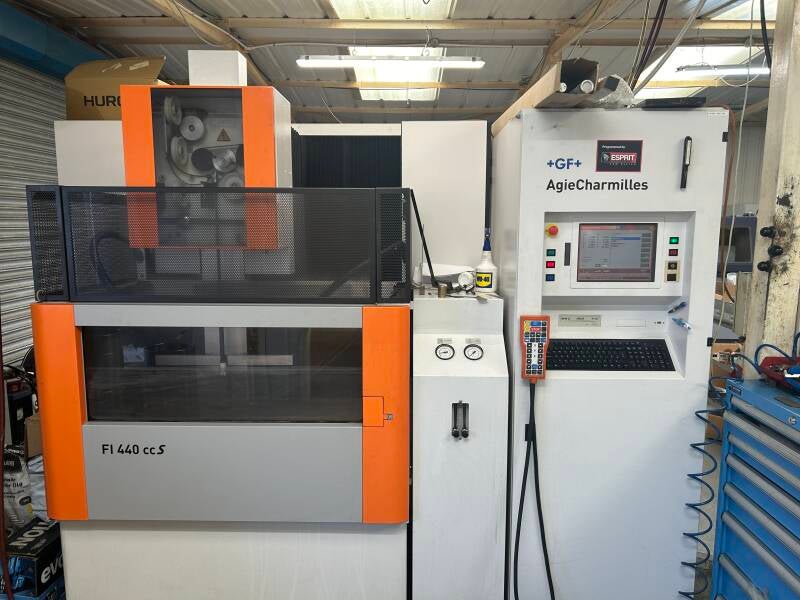

Robofil FI 440ccs

Machine capacity X, Y, Z travel 550mm x 350mm x 400mm - U, V travel 550mm x 350mm - Max Taper +/- 30 Degrees at 400mm

TTS-46-46-T1Y-T2Y/Fanuc 31iPlus

Max Swing Diameter: 240mm

Max Turning Diameter: 120mm

Max Distance Between centers: 600mm

Max Draw Tube Bore: 46mm

Max Spindle Speed: 5000rpm

Upper and Lower Turrets: 12 Stations

CMZ TA-30-YS-640

Integrated Spindle Motors: Operates at 12,000rpm with oil cooling for enhanced stability and precision.

Coolant System: Includes a thermal sensor in the bed to control oil temperature, ensuring efficient cooling.

Turret Design: Features a rigid turret with a curvic coupling for improved tool change times of 0.2 seconds.

Configuration Options: Offers various bed lengths and multiple configurations to suit different machining needs.

CMZ TA-30-YS-640

Max Turning Diameter: 460mm (18.1")

Max Swing Diameter: 760mm (29.9")

Main Spindle Power: Built-in Integrated motor, up to 42KW / 1020 nm

Main Spindle speed: up to 4,500 rpm

Stations: 12 Position turret (all live tool capable)

Driven Tool speed: 12,000 rpm oil-cooled driven integrated motor

Nakamura AS-200L

Turning Length: Up to 570mm (22.4") with optional sub Spindle

Spindle Speed: 6000 min -1 for driven tools

Turret Capacity: Supports up to 24 stations on a dodecagonal drum turret or 15 stations on a 15 drum turret

Bar Capacity: 65mm or 71mm on the left spindle with a optional 42mm on the right spindle

Tool Room

• Colchester Mascot
✓ Centre lathe
✓ Digital readout
✓ Swing 10.5

• Hardinge Turret Lathe
✓ Digital readout

• Ajax Turret Milling Machine
✓ Digital readout

• Jones & Shipman 1302
✓ Universal grinder

• Jones & Shipman Surface Grinder
✓ 300mm x 600mm table

• Dedtru Centreless Grinder
✓ ∅ 3.0mm - 32.0mm

• Tool and Cutter Grinder

•Delapena Auto Speedhone
